transport goods along rails, controlled via a computer interface or remote control. With this system, forklifts are no longer required to travel deep into the racking lanes, significantly reducing handling time and increasing storage capacity by up to three times compared to conventional racking systems.
1. What Is a Two-Way Shuttle System?
The Two-Way Shuttle is an automated robot designed to move in two directions (forward and backward) within an intelligent warehouse racking system. It is capable of transporting pallets with loads of up to 1,500 kg. This solution is ideal for warehouses with simple racking layouts and medium in/out throughput, enabling automation at a lower investment cost compared to a Four-Way Shuttle system.

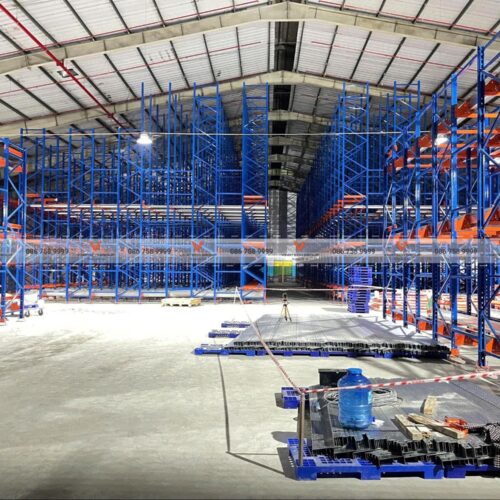

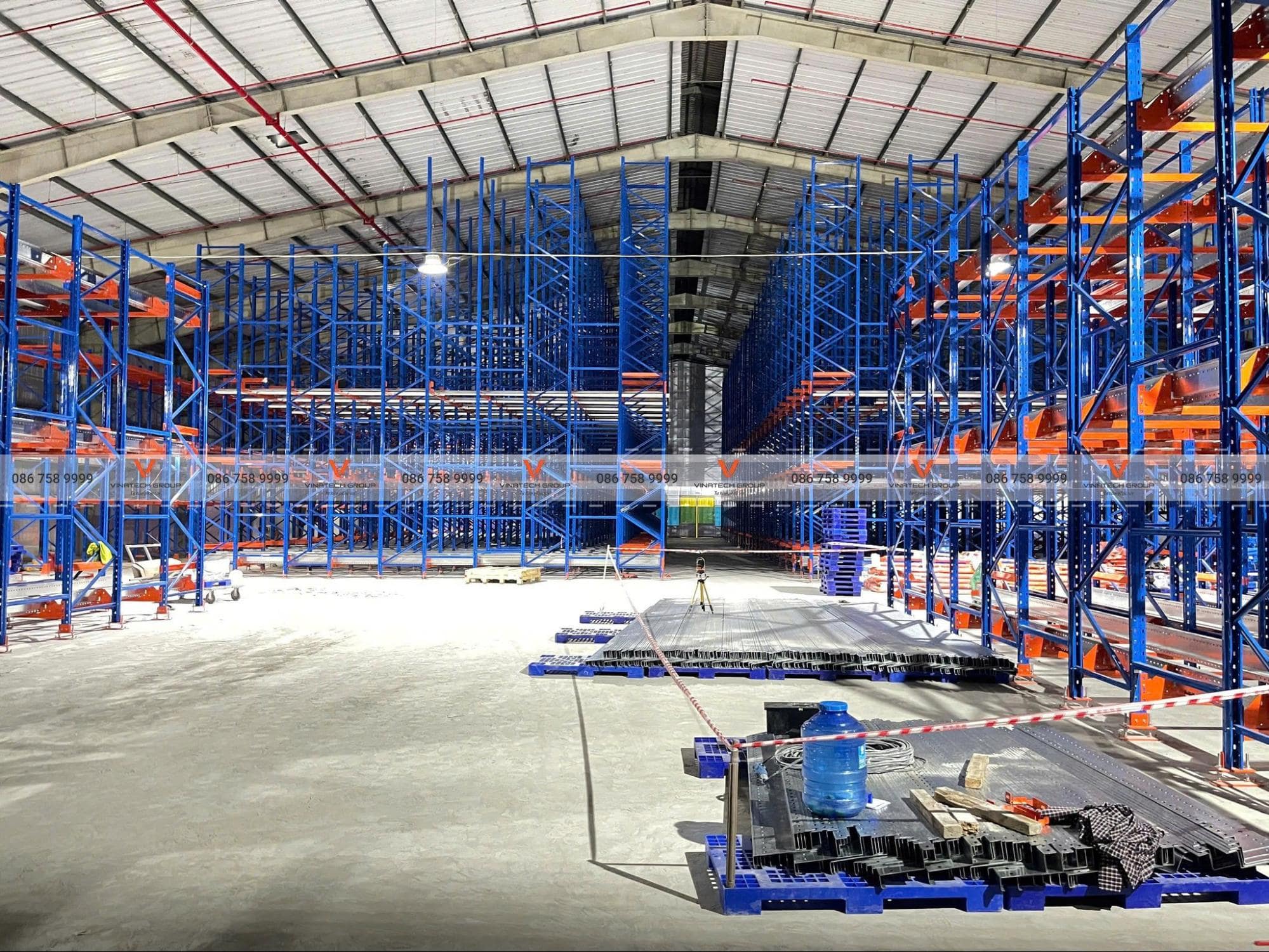

In simple terms, the warehouse consists of high-density, multi-level racking. Instead of forklifts or manual handling entering deep storage lanes, the shuttle receives pallets at the entry point, moves them to predefined locations within the rack, and retrieves them upon command. When multiple shuttles operate simultaneously, the warehouse functions like a fully automated production line.
2. Two-Way Shuttle System Components
A complete Two-Way Shuttle System typically consists of the following key components:
- Anti-slip ribbed lifting platform: Ensures pallet stability during lifting and transportation.
- 30Ah – 48V lithium battery: Provides long operating time with fast charging, suitable for continuous operation.
- Pallet dimension detection sensors: Automatically verify pallet compliance before operation.
- Pallet spacing sensors: Precisely control pallet positioning and ensure safe loading and unloading.
- Emergency stop button (E-STOP): Instantly shuts down the system in case of emergencies.
- Anti-collision sensors: Detect obstacles and minimize collision risks during shuttle movement.
3. Technical Specifications of the Two-Way Shuttle System
Below are typical technical specifications of the Two-Way Shuttle System. Parameters can be customized according to actual operational requirements:
| Item | Specification |
| Rated Load | 500 – 1,200 kg per pallet |
| Travel Speed (Unloaded) | 1.2 m/s |
| Travel Speed (Loaded) | 1.0 m/s |
| Lifting Motor Power | 1,000 W |
| Travel Motor Power | 1,000 W |
| Battery Capacity | 30 Ah |
| Battery Voltage | 48 V |
| Charging Time | Approx. 3.5 hours |
| Continuous Operating Time (Ambient) | 7 – 8 hours |
| Continuous Operating Time (Cold Storage) | 5 – 6 hours (with 1,000 kg load) |
| Central Controller | Siemens S7-1200 PLC |
| Operating Temperature | +5°C to +45°C |
| Lifting Stroke | 45 mm |
4. Advantages of the Two-Way Shuttle System
The Two-Way Shuttle System is a modern alternative to conventional racking solutions, offering the following key advantages:
- Maximum space utilization: With lane depths of up to 40 meters or more, the system achieves extremely high storage density, utilizing up to 80% of warehouse space.
- Flexible inbound/outbound operation: Supports both LIFO and FIFO storage strategies.
- Reduced errors and product damage: Software-controlled operation minimizes picking errors, product loss, collision risks, and maintenance costs.
- Easy scalability: Modular design allows for easy expansion by adding rails, increasing rack levels, or deploying additional shuttle units to meet future capacity demands.
5. Applications of the Two-Way Shuttle System
The Two-Way Shuttle System has moved beyond being a trend and is now a proven solution widely adopted across various industries, including:
E-commerce Warehouses
Ideal for high-order-volume operations with frequent inbound and outbound activities. The system optimizes storage density while maintaining flexible access to individual SKUs.
Food & Pharmaceutical Warehouses
These industries require strict batch control, expiration date management, and controlled storage conditions. The Two-Way Shuttle System meets these requirements through automated operation and flexible FIFO/LIFO handling.
Automotive Parts & Electronics Manufacturing
Characterized by a large number of SKUs and fast retrieval requirements, this sector benefits from improved organization, optimized travel paths, and faster picking. The system is also easily expandable both horizontally and vertically, supporting future factory growth.
Cold Storage, FMCG & 3PL Logistics
For industries requiring continuous material flow and cold-chain storage, such as FMCG, chilled and frozen food, and third-party logistics (3PL), the Two-Way Shuttle System delivers stable performance, reduced labor costs, and increased warehouse efficiency. It also adapts well to seasonal fluctuations, SKU variations, and diverse customer requirements.
The Two-Way Shuttle System is an optimal solution for enterprises aiming to automate warehouse operations and enhance overall efficiency. Timely investment and the selection of a reliable solution provider can deliver long-term competitive advantages. With proven expertise across numerous domestic and international projects, Vinatech Group partners with businesses on their journey toward warehouse optimization and digital transformation.
