Heavy-Duty Industrial Racking Systems – 2025 Price Guide

1. What is a Heavy-Duty Racking System?

Heavy-duty pallet racking systems are designed to store large, high-weight goods such as steel coils, construction materials, or industrial equipment. With over 14 years of experience, Vinatech Group provides high-quality, customizable heavy-duty racks to optimize warehouse space and improve operational efficiency.

2. Top 10+ Heavy-Duty Racking Types in 2025

2.1. Selective Pallet Racking

The most popular racking system for warehouse racking.

• Load capacity: 500 – 5000 kg/pallet
• 100% direct pallet access from both sides
• Easy to adjust beam levels and compatible with most forklifts
• Cost-effective and flexible for multi-SKU warehouses

2.2. Double Deep Racking

Two Selective heavy duty racking installed back-to-back to double storage capacity.

• Space-saving up to 50%
• Load capacity: 2000 – 4000 kg/level
• Operates on the LIFO principle
• Requires a specialized reach truck


2.3. Drive-In Racking

Ideal for cold storage and bulk storage warehouses.

• Space utilization up to 80%
• Load capacity: up to 3000 kg/level
• Suitable for low-SKU, high-volume goods
• Reduces aisles and maximizes cubic storage space

2.4. Pallet Flow Racking

Also called gravity flow racking.

• Uses roller tracks for automatic pallet movement

• Operates under FIFO principle

• Load capacity: 1000 – 2000 kg/pallet

• Ideal for food, pharmaceutical, and distribution centers


2.5. Push Back Racking

Each pallet pushes the previous one backward.

• Load capacity: 1000 – 2000 kg/level

• Stores 2–4 pallets per lane

• Improves space usage by up to 70%

• Operates under LIFO method


2.6. Mobile Racking System

High-density storage solution where racks move on floor rails.

• Load capacity: 2000 – 3500 kg/level

• Motorized movement via remote or automatic control

• Reduces the number of fixed aisles

• Perfect for cold or compact warehouses

2.7. Shuttle Racking System

Automated solution using shuttles running on rails.

• Load capacity: 500 – 1500 kg/pallet

• Controlled via remote or WMS system

• Works efficiently in cold storage or high-throughput warehouses

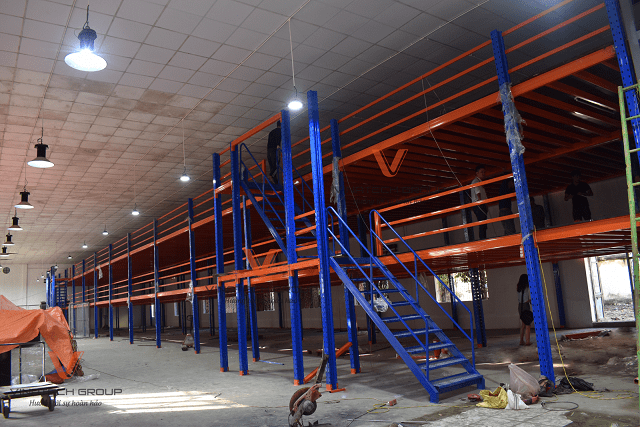

2.8. Mezzanine Floor Racking

Expands warehouse space vertically.

• Doubles or triples usable storage area

• Strong steel structure supports both people and goods

• Used for offices, picking areas, or multi-level storage

2.9. ASRS (Automated Storage and Retrieval System)

Advanced automation system integrated with software for full warehouse control.

• Reduces human error and increases accuracy

• Real-time inventory management

• Maximizes cubic warehouse capacity


2.10. Very Narrow Aisle VNA Racking

High-density racking with minimal aisle width (1.8–2.2m).

• Height up to 17–20m

• 100% direct pallet access

• Compatible with turret or trilateral forklifts

• Ideal for warehouses with limited floor space

3. Heavy-Duty Rack Price Guide 2025

Prices vary depending on rack type, size, material, and load requirements.
To receive an accurate quotation, contact Vinatech Group directly for consultation.

✅ International standards: ISO 9001:2015, ISO 14001:2015, ISO 45001:2015, AS 4084-2023
✅ High-grade steel: POSCO & Hoa Phat
✅ Strict quality control: Welding, coating, and load testing before delivery
✅ Warranty: 5-10 years depending on product type
✅ Free 2D/3D design and on-site survey

4. Why Choose Vinatech Group

Vinatech Group is a leading manufacturer and installer of industrial storage systems in Vietnam.

Our strengths include:

• 50,000 m² manufacturing plants in both North & South Vietnam
• 500+ experienced engineers and installation experts
• 200+ nationwide distributors and partners
• Over 50,000 successful warehouse projects
• Free consultation, survey, and customized design solutions
