Drive-In racking is the ultimate storage solution for warehouses needing to maximize capacity with homogenous, single-SKU products. By minimizing aisles, this system can dramatically increase pallet density. But is it suitable for products with expiration dates or for facilities that handle diverse inventory? Join Vinatech Group as we explore the complete capabilities, applications, and technical details of this powerful storage system.

Ask For Price

What is a Drive-In Racking System?

Drive-In racking is a heavy-duty industrial storage system that creates a high-density “tunnel” or block of storage for pallets. Its defining feature is that forklifts drive directly into the racking structure along dedicated lanes to deposit or retrieve pallets. By eliminating the need for numerous aisles, this system can increase storage utilization by up to 70-80% compared to standard selective racking.

The system is engineered for LIFO (Last-In, First-Out) inventory management, making it perfect for large batches of identical products that are not time-sensitive.

While not as automated as advanced systems like Pallet Shuttle or ASRS, Drive-In racking offers exceptional storage density at a significantly lower initial investment. It is the preferred solution for industries dealing with bulk goods, such as cold storage, food and beverage, and building materials.

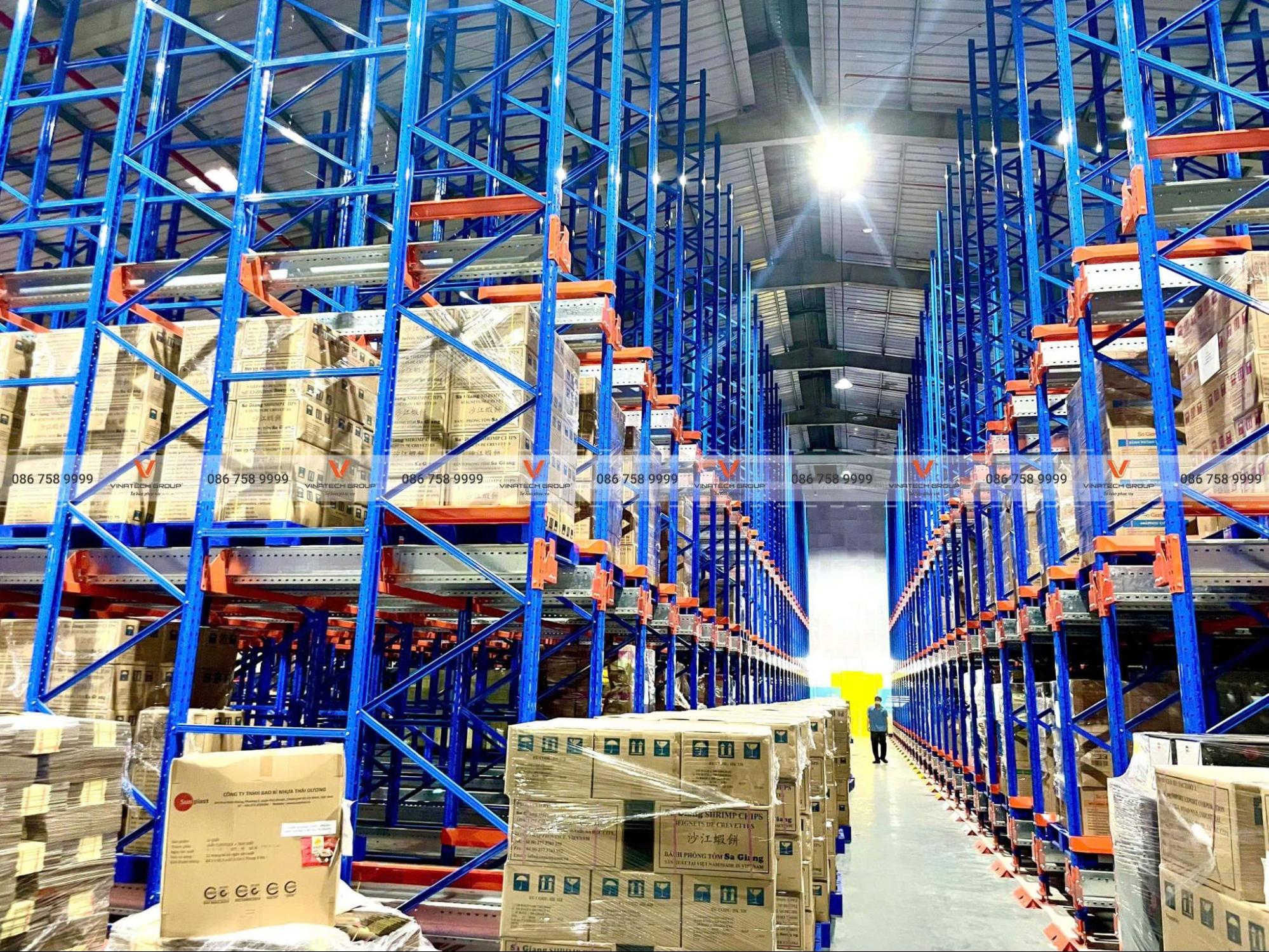

Drive-In Racking
Drive-In racking is a heavy-duty industrial storage system

Technical Specifications

Vinatech Group engineers every Drive-In system for maximum density, safety, and durability

Specification Details
Racking Type Heavy-Duty Pallet Racking
Brand Vinatech Group
Load Capacity 500 – 1,000 kg per Pallet
Lane Depth Up to 10 – 12 pallets deep
Space Optimization Up to 80% increase in storage capacity
Steel Material SPCC JIS Grade 1 Cold-Rolled Steel (Posco)
Surface Finish European-standard electrostatic powder coating
Standard Colors Blue & Orange (custom colors available upon request)
Drive-In Racking
Technical Specifications of Drive-In Racking

How Does a Drive-In System Work?

The system operates in two primary configurations, determining the inventory rotation method.

  1. Drive-In Racking (One Entrance – LIFO) This is the most common setup. The racking block is placed against a wall, providing forklift access from only one side. Pallets are loaded by pushing them to the furthest available position in a lane, starting from the top level and working down. Retrieval is done in reverse order. This enforces a strict LIFO (Last-In, First-Out) workflow.
  2. Drive-Thru Racking (Two Entrances – FIFO) In this configuration, the racking block is accessible from both ends. This allows forklifts to load pallets from one side and retrieve them from the opposite side. This creates a FIFO (First-In, First-Out) workflow, making it suitable for products with expiration dates or where stock rotation is crucial.

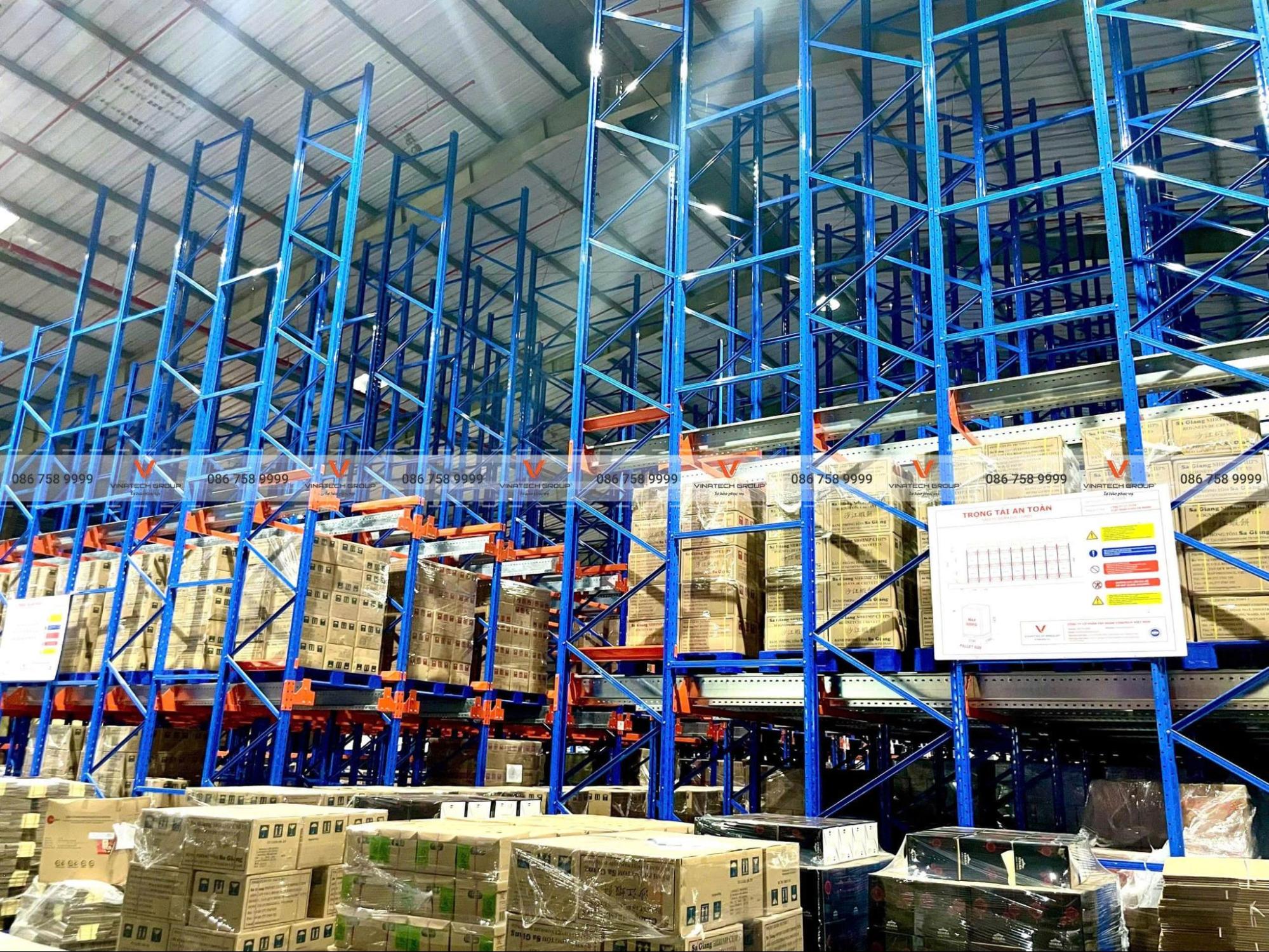

Drive-In racking
Drive-In Racking operates in two primary configurations

Core Components

A safe and stable Drive-In system is built from several key structural elements:

  • Upright Frames: The main load-bearing vertical columns, perforated to allow for adjustable rail heights.
  • Pallet Rails: Horizontal rails that run the depth of the lane, providing a continuous ledge for pallets to rest on.
  • Top & Back Bracing: Horizontal and diagonal braces that provide critical lateral stability to the entire structure.
  • Floor Guide Rails: Tracks installed on the floor to guide the forklift safely into the lane, preventing collisions with the uprights.
  • Upright & Post Protectors: Heavy-duty steel guards installed at the base of the front columns to absorb impacts from forklifts.
  • Pallet Stoppers: Welded stops at the end of each pallet rail to prevent pallets from being pushed too far back.

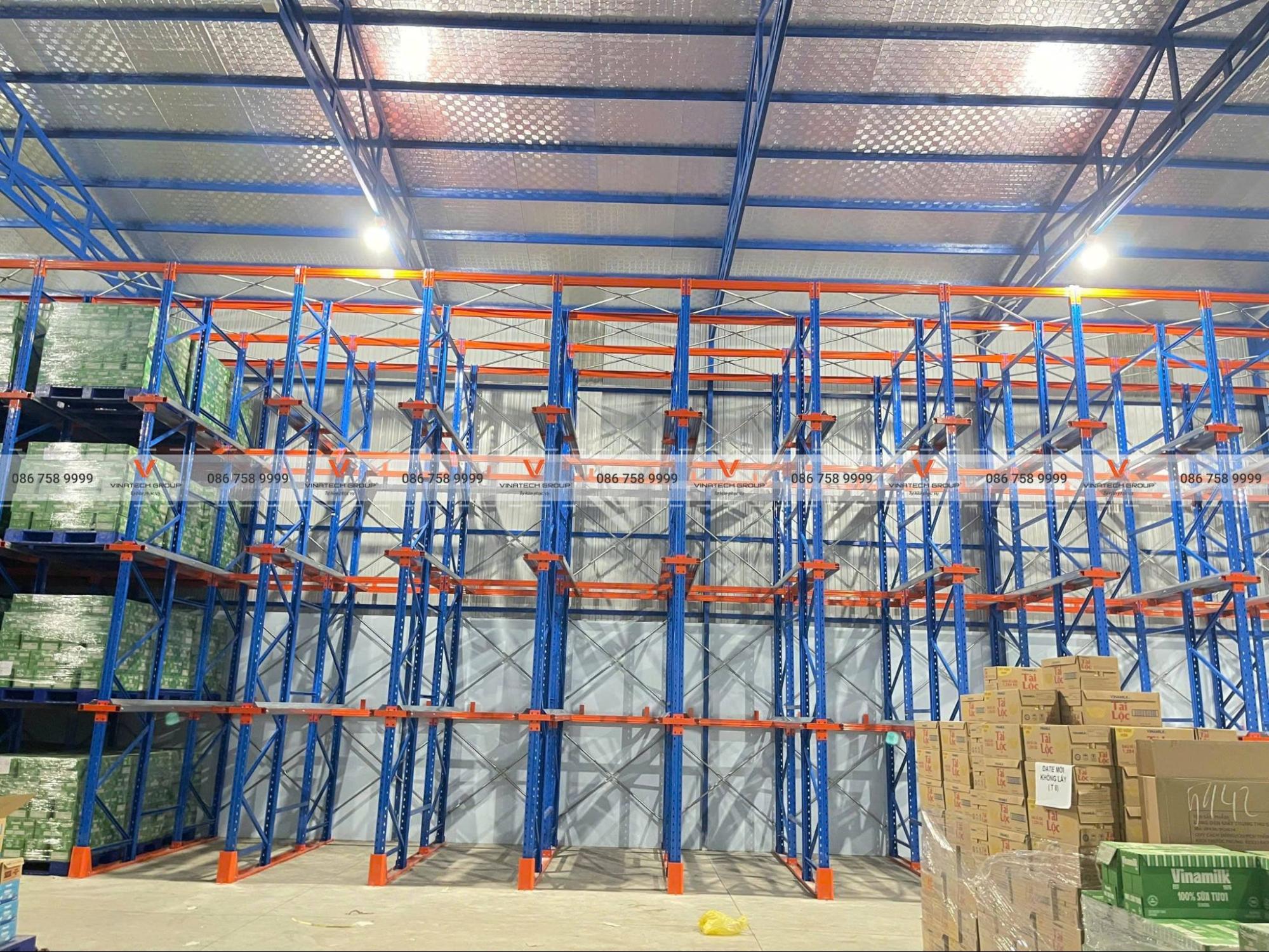

Drive-In Racking
Drive-In Racking consists of 6 main components

Key Advantages of Drive-In Racking

  • Maximum Space Utilization: By eliminating most aisles, it offers one of the highest storage densities of any pallet racking system.
  • Cost-Effective Density: Provides high-density storage at a lower cost per pallet position compared to more complex automated systems.
  • Ideal for Bulk Storage: Perfect for storing large quantities of uniform products, allowing for efficient batch management.
  • Excellent for Cold Storage: The compact design reduces the total volume of air that needs to be cooled, resulting in significant long-term energy savings.
  • Robust & Durable: Engineered with heavy-gauge steel and multiple safety features to withstand the demands of industrial environments.

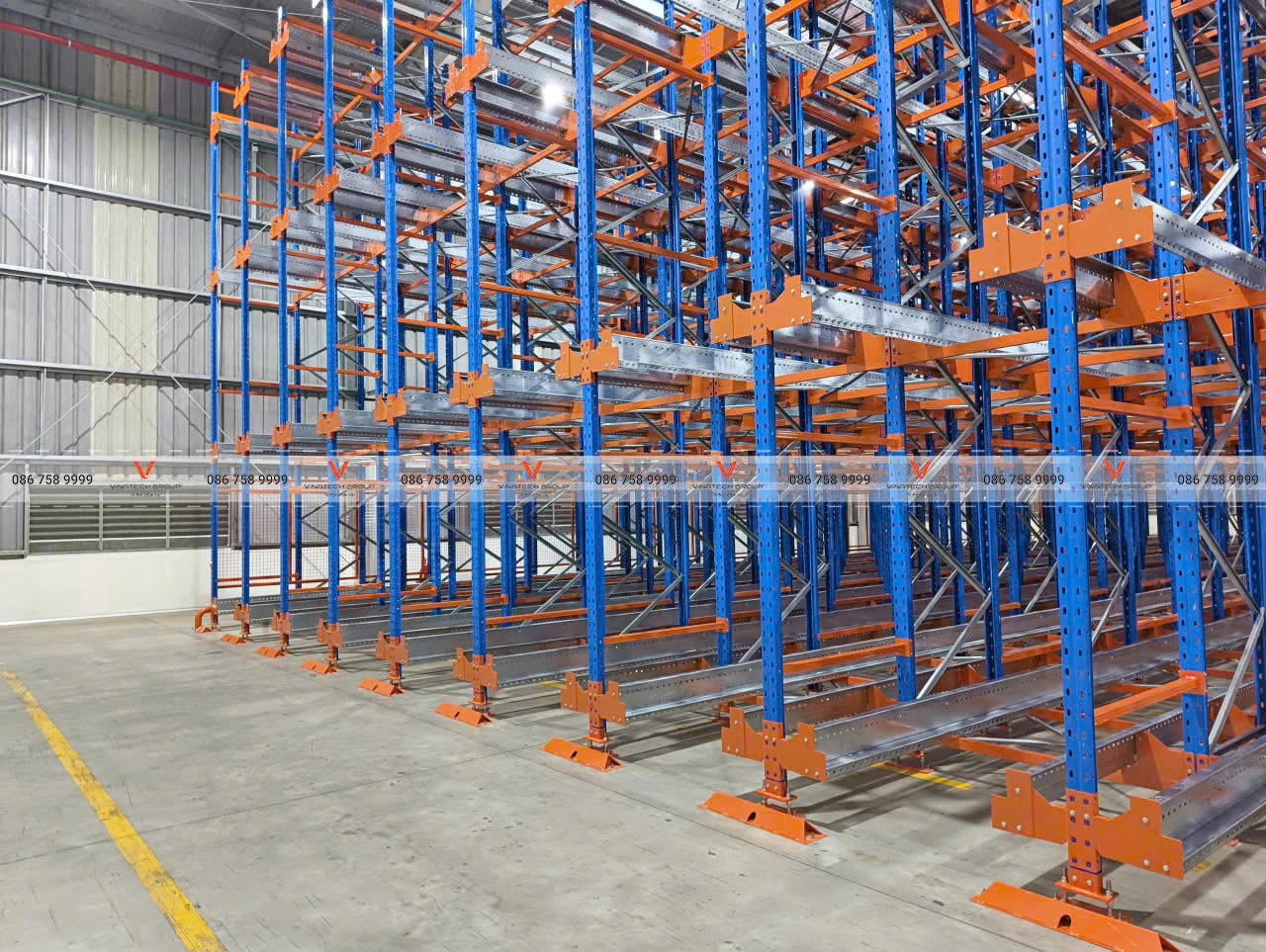

Drive-In Racking
Key Advantages of Drive-In Racking

Important Considerations & Limitations

  • Low Selectivity: Accessing a specific pallet requires “unloading” all pallets in front of it. It’s not suitable for operations with a high number of different SKUs.
  • Slower Access Times: The need for careful maneuvering inside the structure makes pallet handling slower than with open-aisle systems.
  • Higher Risk of Damage: Because forklifts operate inside the racking, there is an increased risk of impact damage if operators are not properly trained. Protectors are essential.
  • Requires Uniform Pallets: The system relies on pallets of consistent size and quality to rest securely on the support rails.
Drive-In Racking
Limitations of Drive-In Racking Systems

Is Drive-In Racking Right for Your Warehouse?

This system is the optimal choice for businesses that need to store large volumes of a few product types. It excels in:

  • Logistics & 3PL Centers: For bulk storage of client goods, maximizing warehouse rental value.
  • Cold & Freezer Storage: The most popular solution due to its energy-saving benefits and durability (10+ year lifespan).
  • Manufacturing & Production: For storing large batches of finished goods or raw materials before distribution.
  • FMCG, Food & Beverage: For seasonal or high-volume products stored in large, uniform batches.
Drive-In racking
Drive-In racking system is suitable for many types of warehouses

Why Choose Vinatech Group for Your Drive-In System?

Vinatech Group is Vietnam’s leading manufacturer of high-quality, precision-engineered racking systems.

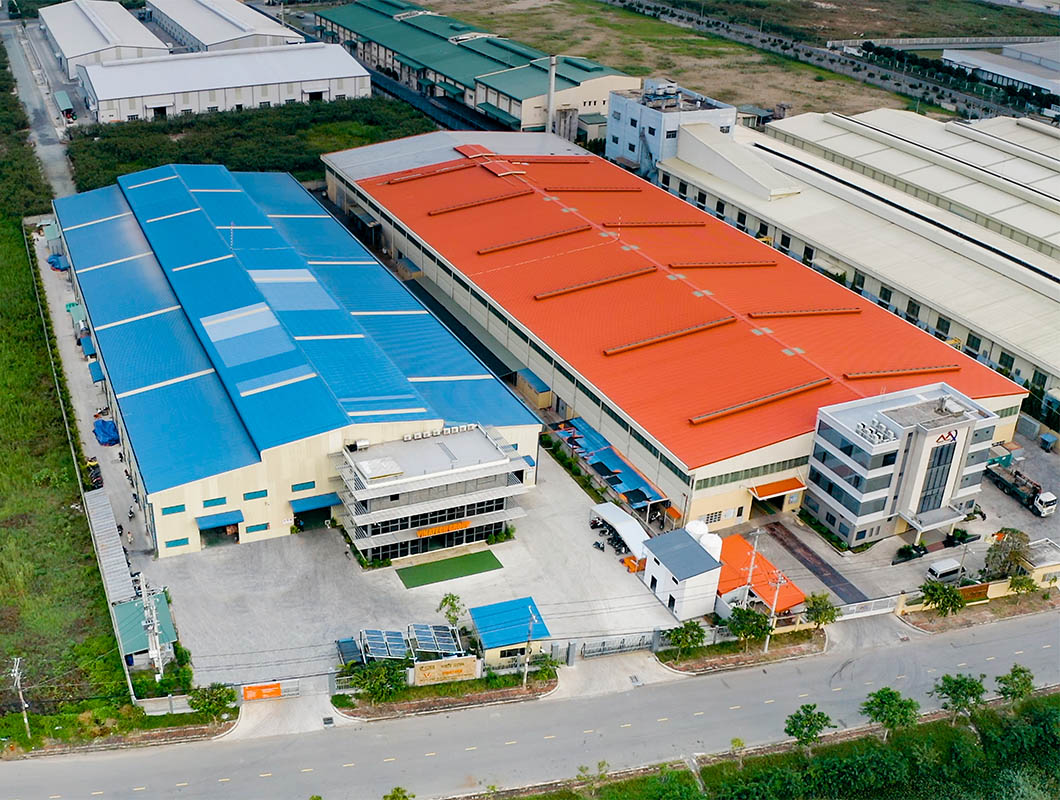

  • Advanced Manufacturing Power: We operate two modern factories covering 50,000 m² in Northern and Southern Vietnam, equipped for large-scale production.
  • Proven Expertise: With over 50,000 successful projects nationwide, we have the experience to design and install the perfect solution for any industry.

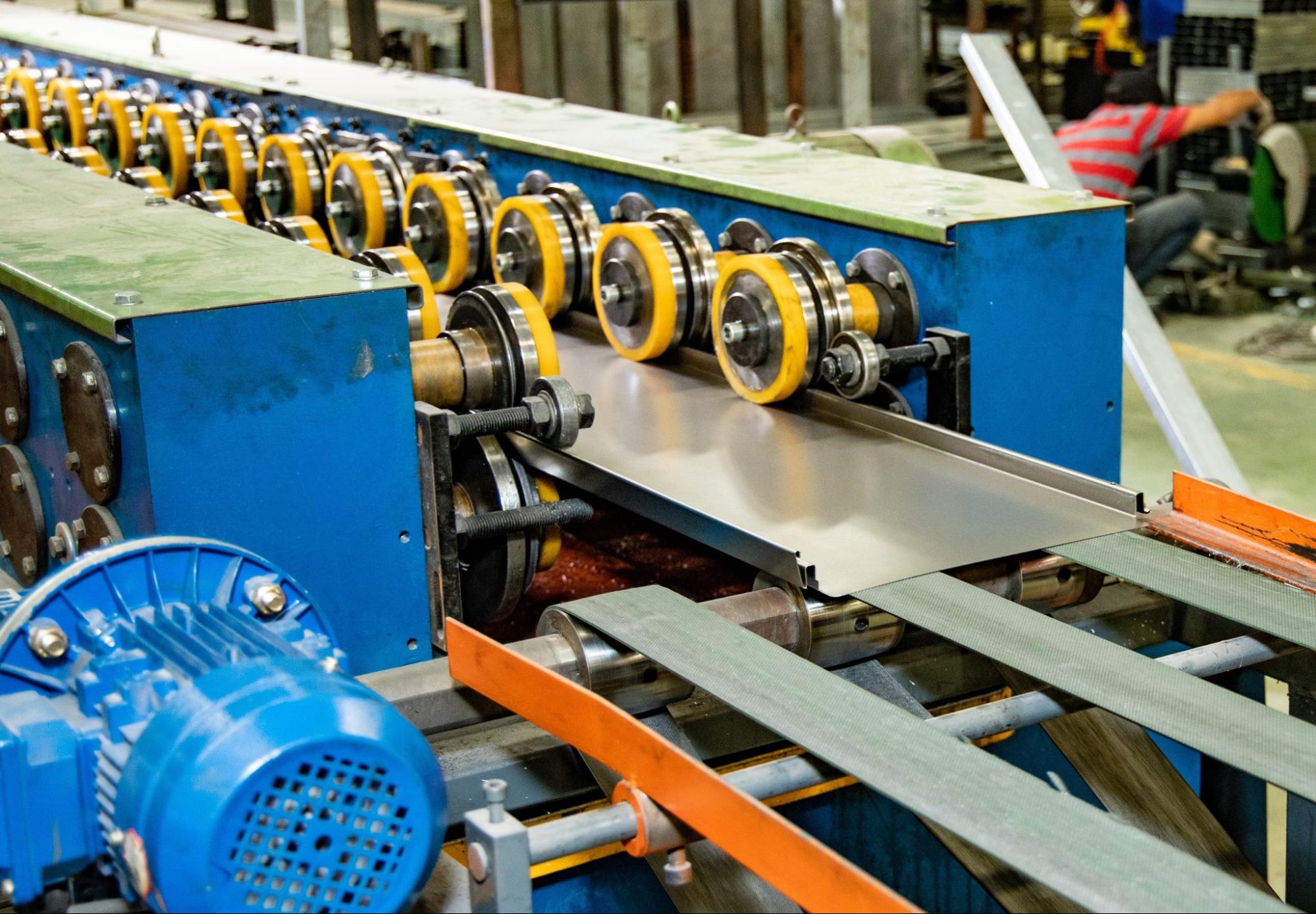

  • ISO 9001:2015 Certified Production: Our automated production lines, including robotic welders, laser cutters, and automated powder-coating lines, ensure unparalleled precision and quality.
  • Premium Materials: We use only Grade 1 SPCC cold-rolled steel from Posco, meeting international standards for strength and durability.
  • Trusted by Industry Leaders: We are the strategic racking partner for major corporations like Lotte Mart, PepsiCo, AEON Mall, and Winmart
