Pallet Shuttle Racking system represents the next evolution in warehouse storage. As a cutting-edge, semi-automated solution, it is rapidly being adopted in advanced industrial zones worldwide. While newer to the Vietnamese market, its impact is undeniable. Join Vinatech Group as we explore the technology, benefits, and applications of this transformative racking system.

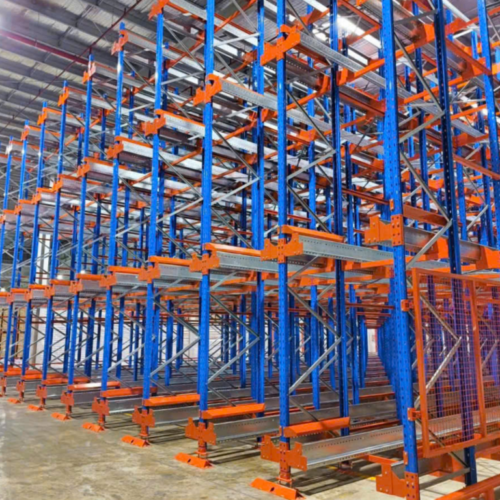

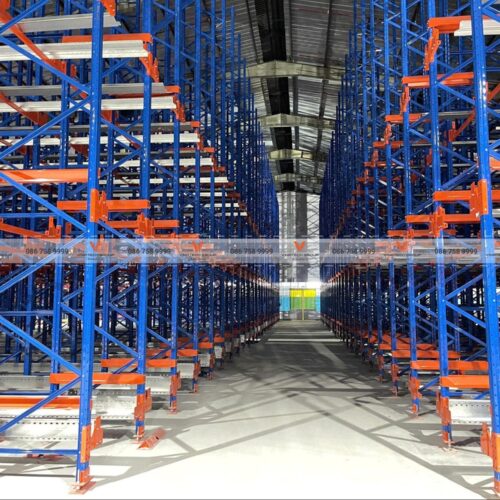

What is Shuttle Racking System?

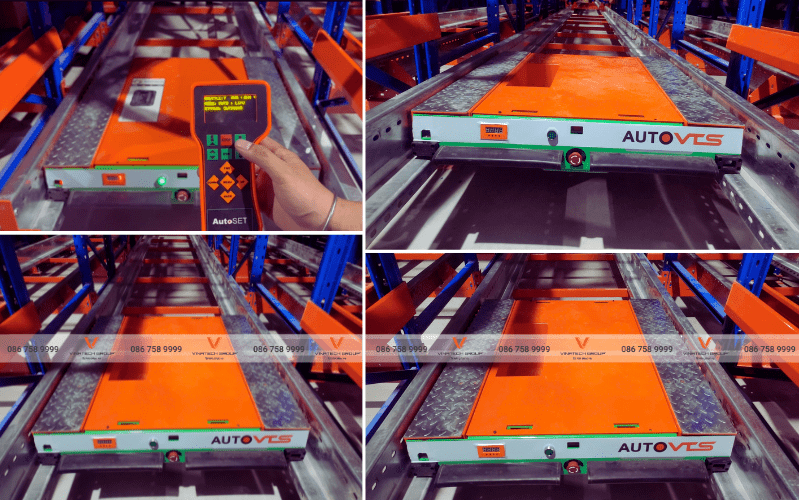

A Pallet Shuttle Racking system is a high-density storage solution that utilizes a self-powered robotic cart (the “shuttle”) to transport pallets along rails within the racking structure. Operators use a remote control or a computerized tablet to command the shuttle, eliminating the need for forklifts to enter the deep storage lanes.
Technical Specifications
Category | Specification |
Steel Material | SPCC JIS G3141 Cold-Rolled Steel |
Max Load per Pallet | 1,500 kg |
Standard Pallet Sizes | 1200mm (W) x 800/1000/1200mm (D) |
Max Lane Depth | 30 meters |
Max System Height | 11 meters |
Standard Colors | Blue, Orange, Galvanized |
Inventory System | FIFO / LIFO Configurable |
Operating Voltage | 48V (DC) |
Charging Voltage | 220V (AC) / 50Hz |
Travel Speed (Loaded) | 0.8 m/s |
Travel Speed (Unloaded) | 1.2 m/s |
Lifting Height | 40 mm |

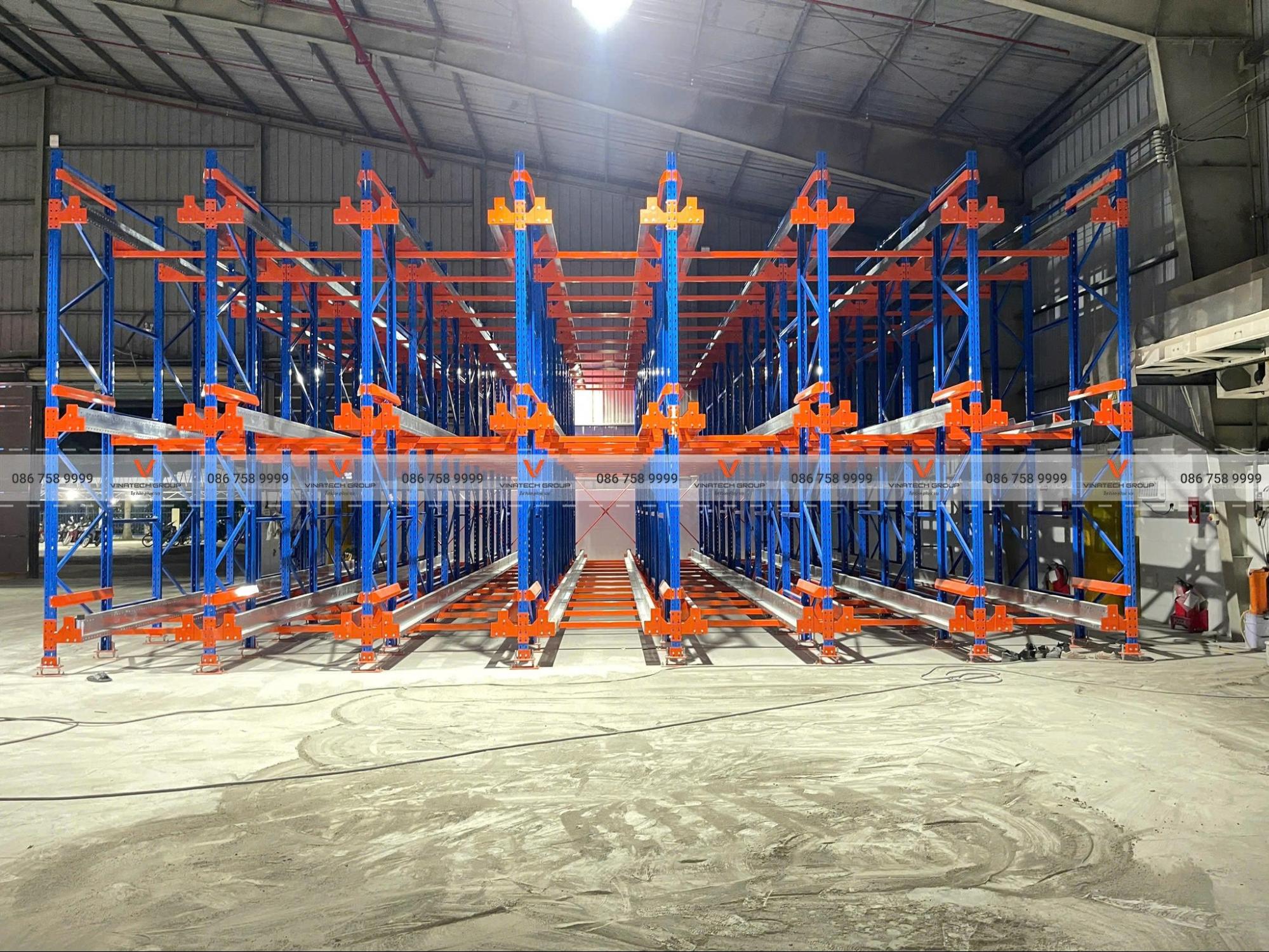

Core Components of the Shuttle Racking System
The system provided by Vinatech Group is comprised of the following key elements:
Component | Function |
Upright Frames | The main load-bearing vertical structures of the entire system. |
Support Beams | Connect the upright frames, creating the bay and supporting the rails. |
Guide Rails | The tracks upon which the shuttle cart travels to transport pallets. |

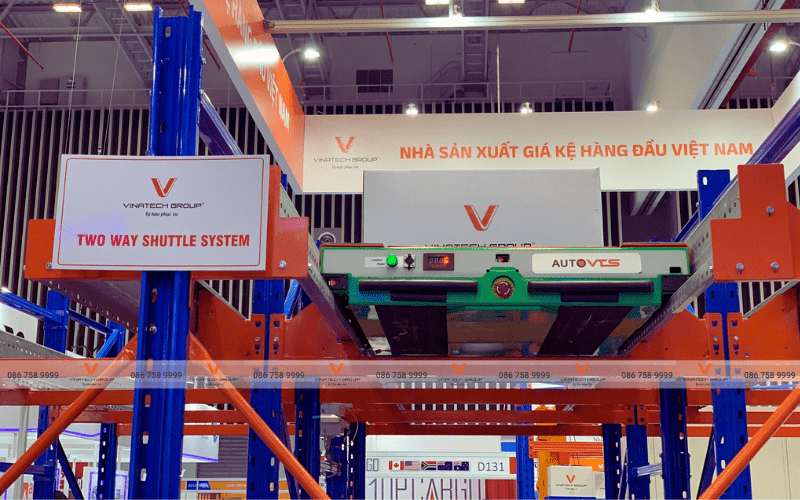

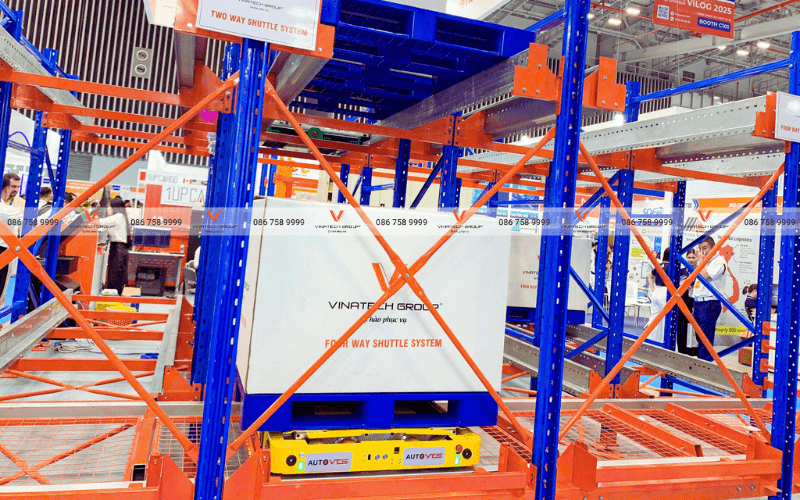

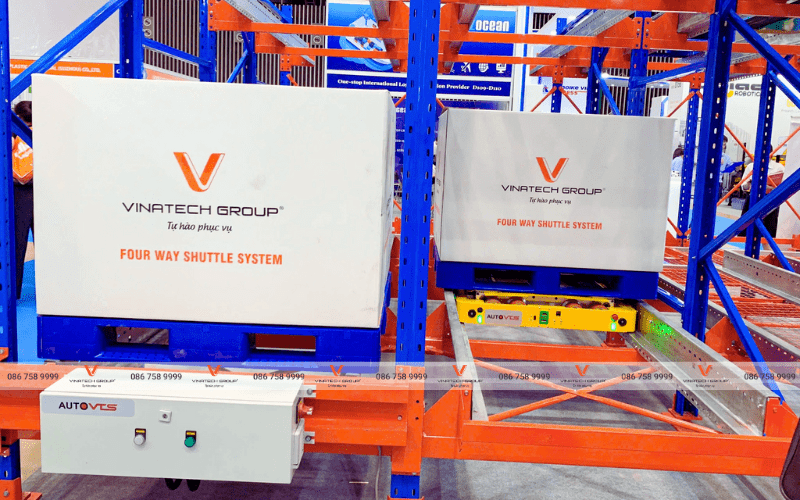

Shuttle Cart (Robot) | The autonomous vehicle that lifts, transports, and places pallets within the system. |
Rail Supports | Secure the guide rails to the support beams. |
End Stops | Prevent the shuttle cart from accidentally exiting the end of a lane. |

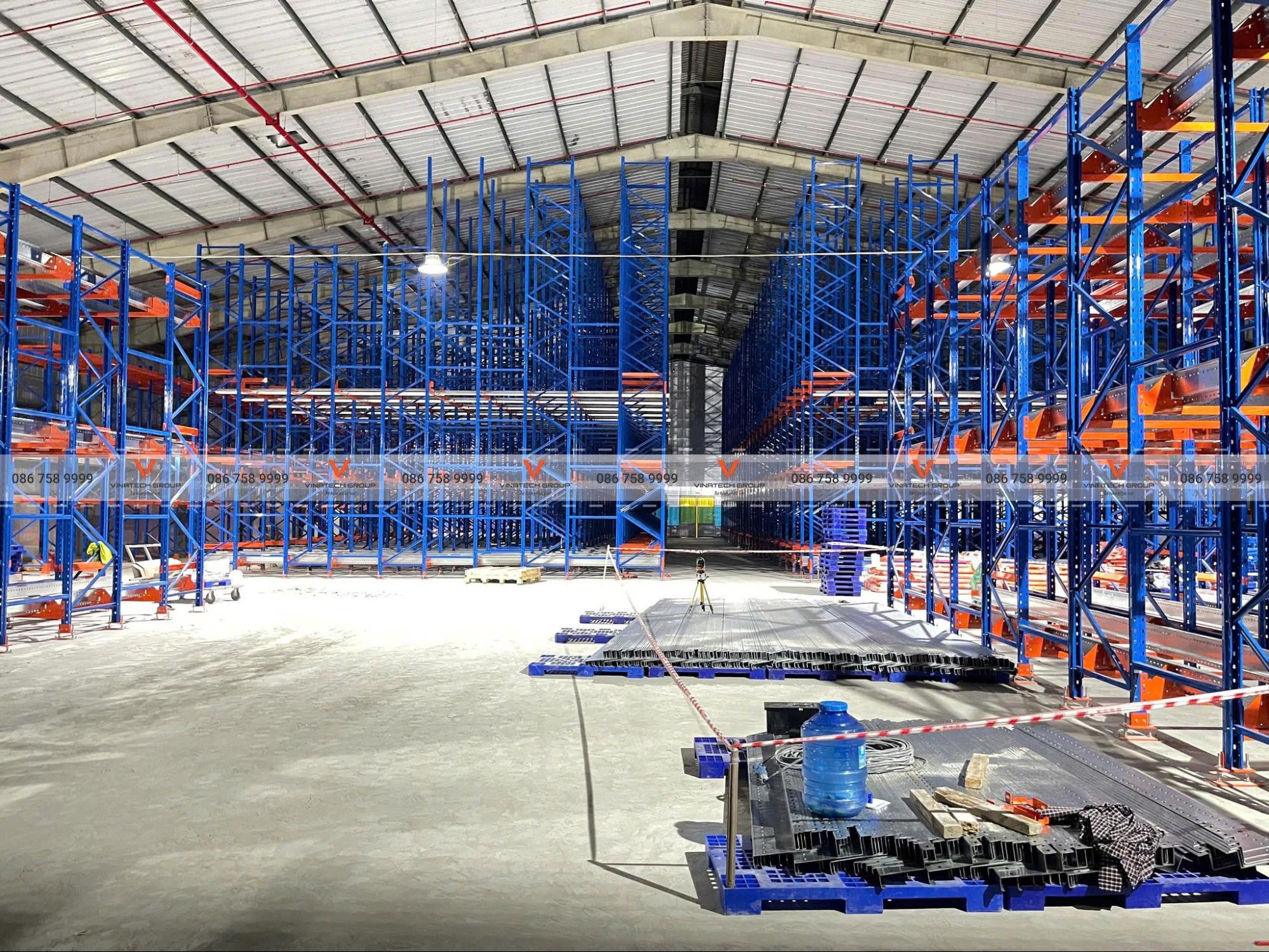

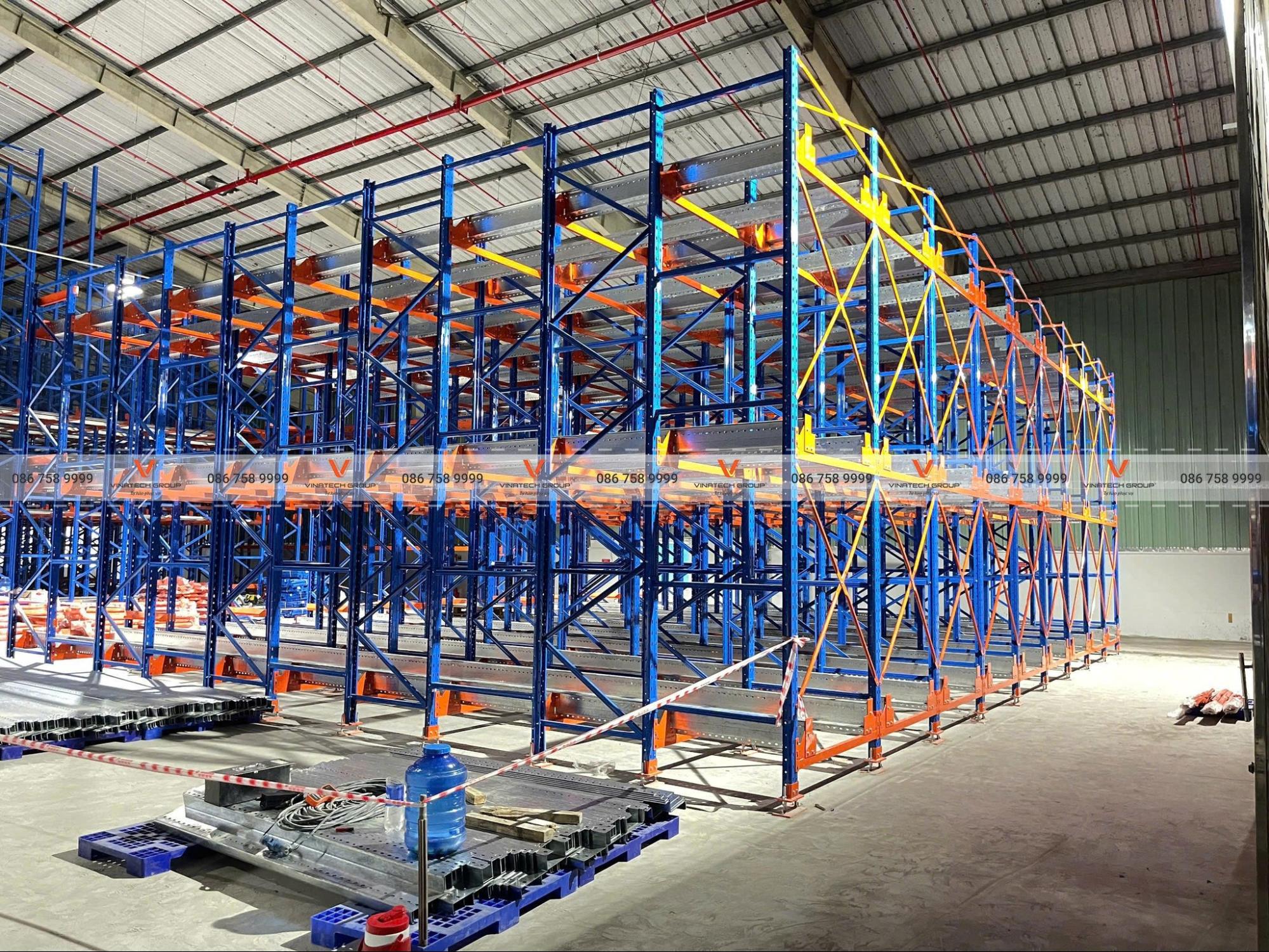

Key Advantages of Automated Shuttle Racking
The Pallet Shuttle Racking system is a powerful upgrade from traditional high-density systems like Drive-In racking, delivering superior performance and a strong ROI.
- Unmatched Storage Density: Utilizes up to 80% of warehouse floor space by eliminating the need for forklift access aisles within the storage block.
- Enhanced Operational Efficiency: With travel speeds of up to 1.2 m/s, the shuttle dramatically reduces put-away and retrieval times, lowering labor costs and increasing throughput.
- Superior Safety & Reduced Damage: Forklifts operate only at the face of the rack, virtually eliminating collisions with the structure and damage to products.
- Flexible Inventory Management: The system is easily configurable for both FIFO (First-In, First-Out) and LIFO (Last-In, First-Out) operations to suit your product flow.
- Ideal for Extreme Environments: Engineered to operate flawlessly in temperatures as low as -25°C, making it perfect for cold storage applications.
- Pinpoint Accuracy: Advanced sensors allow the shuttle to precisely detect and position pallets, ensuring error-free operations.
- Scalable Throughput: Increase your handling capacity simply by adding more shuttle carts to the system.
Understanding the Cost of a Shuttle System
The total investment for a semi-automated Pallet Shuttle Racking system is comprised of two main elements:
- The Racking Structure: The cost is determined by the warehouse size, system height, load capacity, and the manufacturer’s production capabilities. A highly efficient manufacturer like Vinatech can offer more competitive pricing.
- The Robotic Shuttle Carts: The number of shuttles needed to meet your operational throughput targets.
To receive a comprehensive proposal that includes a free custom layout design (2D/3D) and a precise quote for your project, please contact our specialists.
