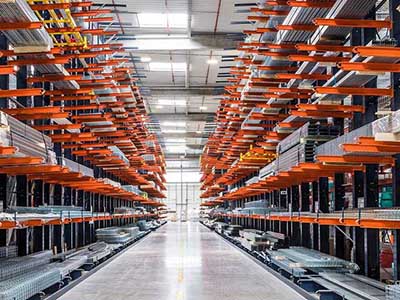

Cantilever Racking System - Vinatech Group
Cantilever Rack is a type of rack for iron and steel application to optimize the useful Cantilever Racking System are designed to hold goods, products with many different sizes, suitable for long pipes, wooden bars …
Ask For PriceSpecifications
This type of rack is suitable for specialized forklift or manual stackers. Cantilever Rack with careful welds and installation, certainly help to display the goods firmly, safety and more convenient. The cost is more expensive than other materials but the durability will be better.
- Upright: Upright is mounted with the foot base. Height and weight depend on usage demand.
- Bracing bar (horizontal and diagonal): The beam bar create stability to whole system. The width and length of the beam bars are determined by the load capacity of stored goods as well as the designed application.
- Cantilever: The cantilever system has diverse styles, sizes and capabilities. The cantilever can be changed base on demand or adjust to be straight or inclined in order to meet fully storage requirement. The length of cantilever range is from 600 to 2500 mm.
- Foot Base: The base system presses against the floor and partially supports to the upright to keeping the whole frame stable and not be wobbly. The size of the foot base depends on the size of the cantilever.
Dimension Details
| Column Height - Depth 300mm | 3300, 4200, 4800, 6000mm |
| Column Height - Depth 400mm | 3300, 4800, 6000mm |
| Base SE and DE | 600, 900, 1200mm |
| Cantilever | 600, 900, 1200mm |
These criterias are in compliance with the Japanese safety standards which has been certified and widely applied in the rack/ shelf manufacture industry today. Based on this standard, Vinatech Group accurately measures system data to assure the product quality gain with ISO 9001: 2008 quality standard.
In the purpose of creating the best quality shelf products to ensure quality and safety criterias as well as meeting the Customer demands and archiving the customer’s storage system.
Storage Feature
- This cantilever racking system is suitable for specialized forklift or manual stackers.
- Cantilever Rack with careful welds and installation, certainly help to display the goods firmly, safety and more convenient.
- Made by premium material, thus the durability will be better than similar products.
- The cost is more expensive than other materials but the durability will be better.
- Designed with screws and nuts so it can be removed easily and quickly.
Specifications
- Standard colors: Blue – Orange – Gray (adjustable at the Buyer’s option)
- Warranty period: Within 12 months.
- Quickly assemble and installation.
- Diverse in design and model to fit with customer demand.
Structure
- Vertical arrangement.
- Design cantilever item on one or both sides.
- Diverse size of foot base.
- Diverse size of length.
- Typical upright could make the whole frame stable.
- Double or single frame design to contains a variety of goods.
- Stable bracing bar.
- Stable and firm cantilever.
- Foot base connected with upright firmly.
